Key Features

  • Measures 11 Impedance Parameters (2 simultaneously)
  • 0.2% Basic Measurement Accuracy
  • Test Frequencies of 100Hz, 120Hz, 1kHz, and 10kHz (9.6kHz)
  • AC Test Voltages of 0.25 and 1.0V
  • Fast Measurement Speeds up to 25/Second
  • Automatic Open/Short Zeroing Eliminates Connection Errors
  • LCD Display for Menu Programming and Test Results
  • Hi/Lo Comparator Limits and 8 Sorting Bins for Pass/Fail Testing
  • RS-232 Interface Standard, IEEE-488 and PLC Optional
  • Results Displayed as Deviation or % Deviation from a Nominal Value
  • Automatic Recall of Test Setup at Power-Up
  • Keypad Lockout Prevents Changes to the Test Setup

LCR Applications

  • Production Testing of LCR Components
  • Component Screening
  • Material Testing
  • Quality Assurance Testing
  • Component Design and Evaluation

» 978-461-2100

Get our Newsletter: Click the link below to register.

1855 - Leakage Current/IR Meter

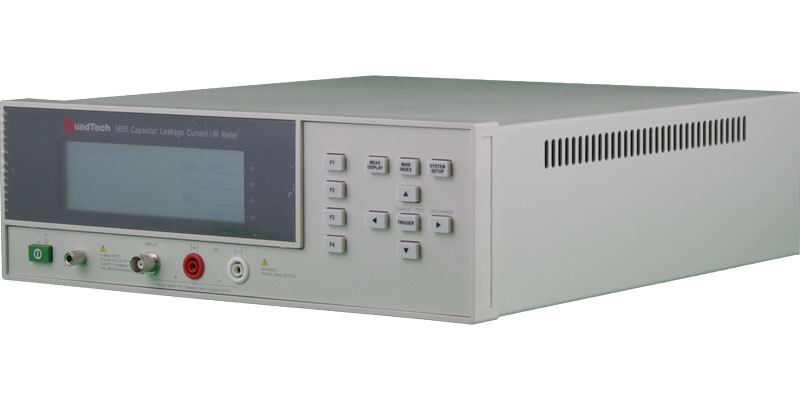

The 1855 Capacitor Leakage Current/IR Meter is a fast and reliable digital leakage current meter. Primarily used for electrolytic capacitor leakage current testing, and aluminum-foil withstand voltage testing, the 1855 instrument also measures insulation resistance. The 1855 instrument comes standard with an RS-232 interface plus it has an optional IEEE-488 & Handler interface for high speed automated measurements. Whether its component evaluation on the production line or bench-top testing in R&D applications, the 1855 Capacitor Leakage Current/IR Meter is right for the task.

1855 Test Frequencies of 100Hz, 120Hz, 1kHz, and 10kHz (9.6kHz)

For remote control, or adaption to a production environment, the 1715 instrument includes an RS-232 interface as standard equipment. Both an IEEE-488 and a Handler interface are available as optional interfaces.


New Feature
Forward Voltage Mode: Forward voltage is specifically designed for production testing, of the breakdown voltage, of zener diodes and TVSS such as MOVs and sparkgaps. Simply enter the maximum applied voltage, between 1.0 and 650VDC, the constant current to be applied to the DUT and high and low voltage limits for pass fail indication. During testing a constant current is applied to the DUT and the voltage is measured and compared with the pass fail limits. Pass fail indication is available via front panel for manual applications, standard RS232 for automated applications and optional handler interface for PLC applications.

Leakage Current: The 1855 instrument measures and displays the undesirable flow of current through a capacitor over any surface of insulation.

Powerful Charge Current: The 1855 Model offers flexibility with programmable charge current from 0.5mA to 500mA in increments of 0.5mA.

Programmable Source Voltage: The DC voltage can be programmed from 1.0V to 100V in 0.1V increments (with current to 500mA) and from 101V to 650V in 1V increments (with current to 150mA).

Precision Measurement: With a basic accuracy of 0.3%, the compact 1855 instrument produces consistent, stable and reliable test results.

Insulation Resistance: The 1855 serves as an economical megohmmeter by measuring and displaying a product's insulation resistance. This resistance can be measured over the range of 10Ω to 99GΩ with a programmable test voltage from 1.0V to 650V DC.

Aluminum Foil Withstand Voltage: The 1855 instrument meets the requirements of EIAJ RC-2364A Standard with a low programmable constant current for charging aluminum electrolytic capacitors. The rise time (Tr) and final test voltage (Vf) are shown on the instrument display.

65 Watt Discharge Circuit: Operator safety is increased with a power discharge circuit that provides rapid and complete discharge of large value capacitors.

Ordering information

1855: LCR Meter
